T320HVN05.6

AUO 32inch T320HVN05.6 TV Screen LCD Replacement

AUO T320HVN05.6 CELL Application Features

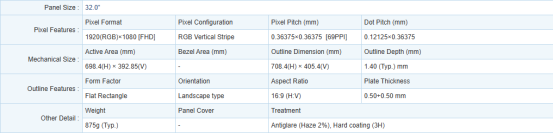

AUO T320HVN05.6 CELL Mechanical Features

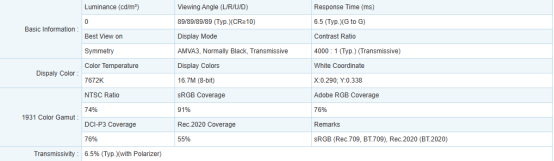

AUO T320HVN05.6 CELL Optical Features

AUO T320HVN05.6 CELL Electronics Features

AUO T320HVN05.6 CELL Backlight Features

AUO T320HVN05.6 CELL Interface Features

AUO T320HVN05.6 CELL Packing Features

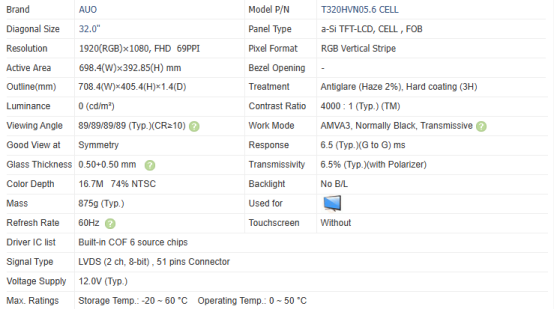

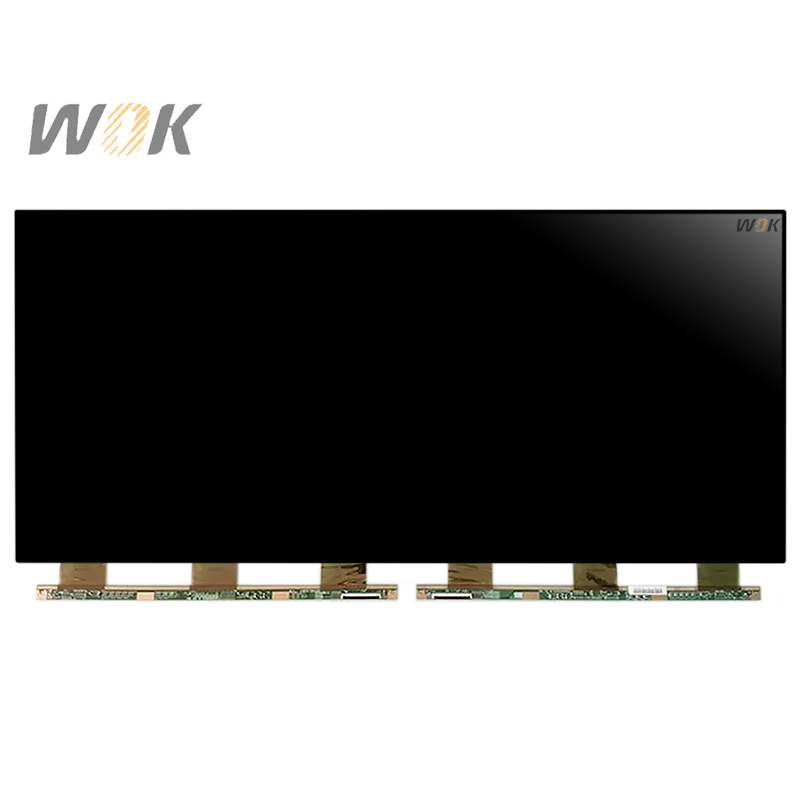

T320HVN05.6 CELL is a 32.0 inch diagonal a-Si TFT-LCD display screen,without backlight, without touch screen.T320HVN05.6 CELL supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 708.4(W)×405.4(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 875g (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T320HVN05.6 CELL can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product have no backlight. T320HVN05.6 CELL utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
