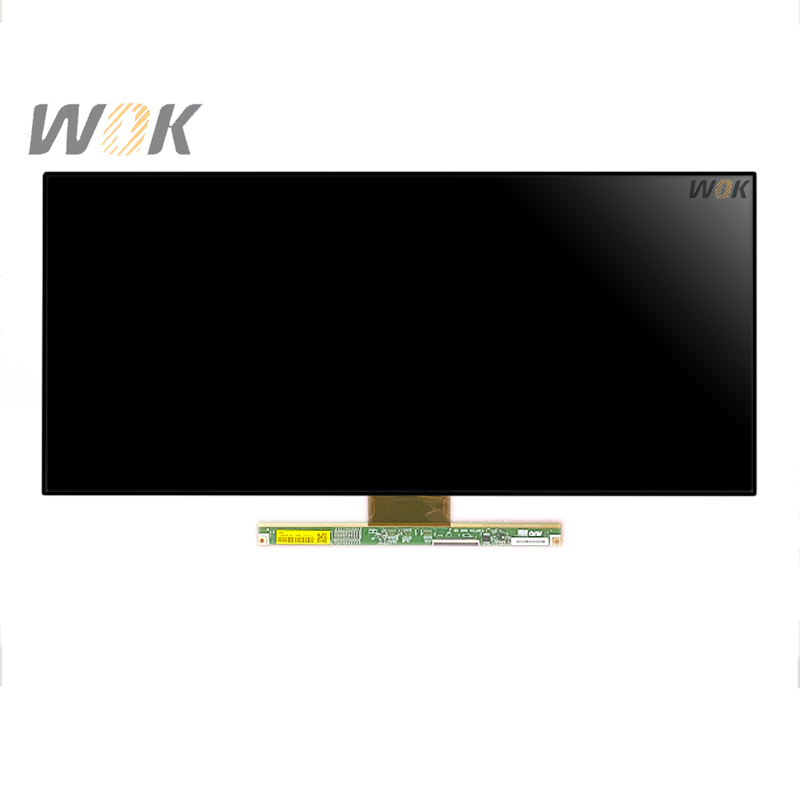

AUO 32Inch T320XVN02.H LCD Screen Product Collection
AUO T320XVN02.H CELL Application Features

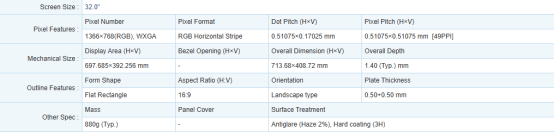

AUO T320XVN02.H CELL Mechanical Features

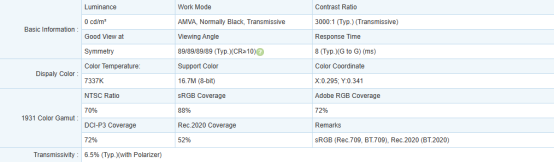

AUO T320XVN02.H CELL Optical Features
AUO T320XVN02.H CELL Electronics Features
AUO T320XVN02.H CELL Backlight Features

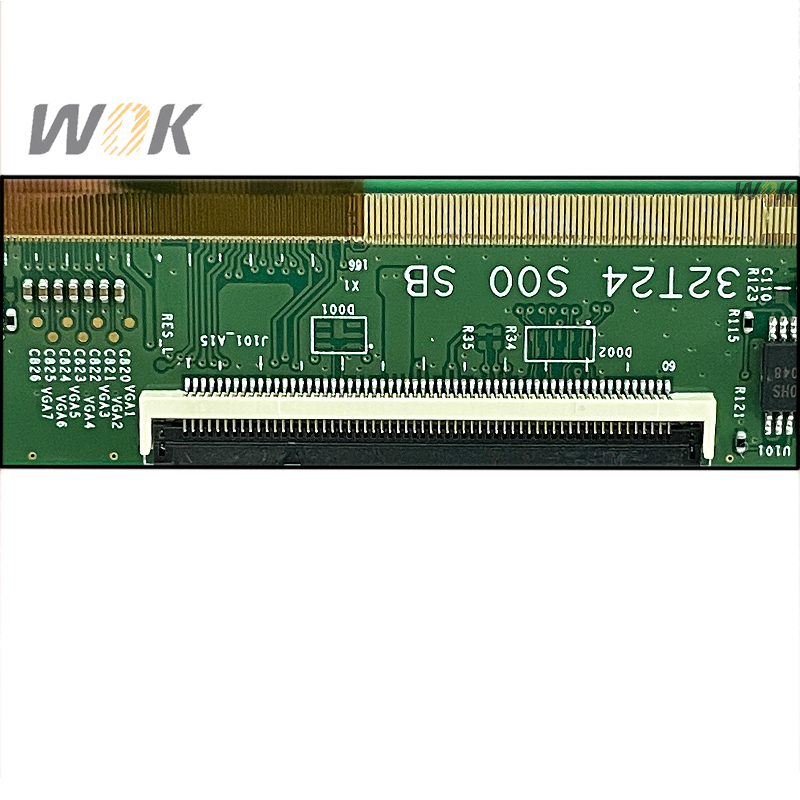

AUO T320XVN02.H CELL Interface Features
AUO T320XVN02.H CELL Packing Features

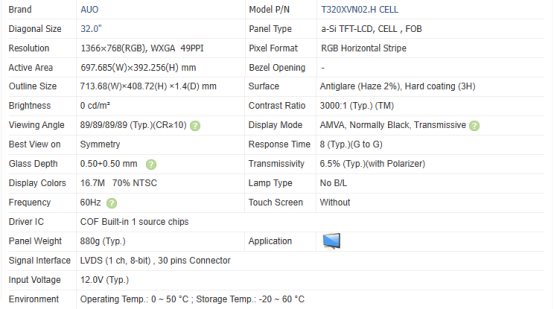

T320XVN02.H CELL supports display 1366×768(RGB) (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 697.685(W)×392.256(H) mm, outline size of 713.68(W)×408.72(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 880g (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA, Normally Black, Transmissive CELL product, T320XVN02.H CELL can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product have no backlight. T320XVN02.H CELL utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
