HV750SUB-S9A

BOE 75Inch 8K LCD TV Panel Replacement

BOE HV750SUB-S9A Application Details

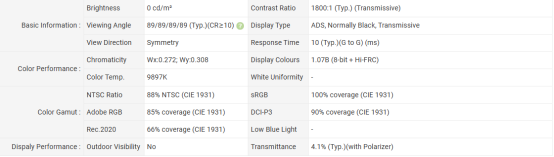

BOE HV750SUB-S9A Optical Details

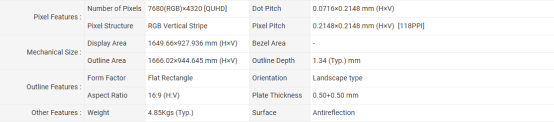

BOE HV750SUB-S9A Mechanical Details

BOE HV750SUB-S9A Electronics Details

BOE HV750SUB-S9A Backlight Details

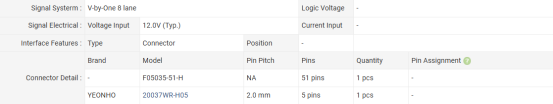

BOE HV750SUB-S9A Interface Details

BOE HV750SUB-S9A Package Details

HV750SUB-S9A supports display 7680(RGB)×4320 (QUHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1649.66(W)×927.936(H) mm, outline size of 1666.02(W)×944.645(H)×1.34(D) mm, with surface treament of Antireflection, net weight of 4.85Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV750SUB-S9A can provides 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 86% (NTSC). This product have no backlight. HV750SUB-S9A utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 56 pins Connector with power supply voltage of 12.0V (Typ.).
