BOE 65inch 8K HV650SUB-F9D LCD Panel Replacement

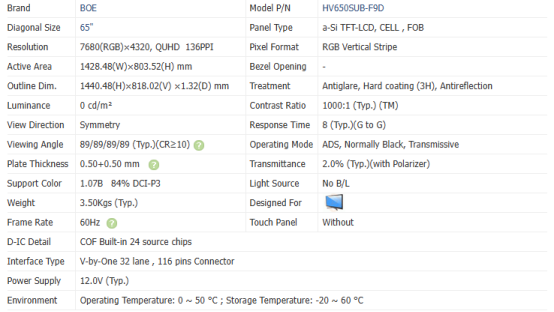

BOE HV650SUB-F9D Application Details

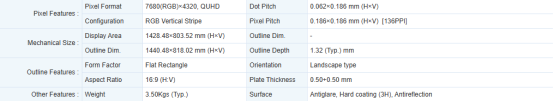

BOE HV650SUB-F9D Mechanical Details

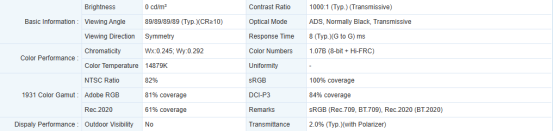

BOE HV650SUB-F9D Optical Details
BOE HV650SUB-F9D Electronics Details
BOE HV650SUB-F9D Backlight Details

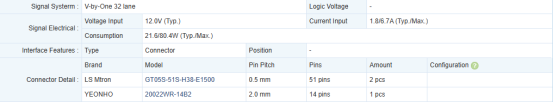

BOE HV650SUB-F9D Interface Details
BOE HV650SUB-F9D Carton Details
HV650SUB-F9D is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HV650SUB-F9D supports display 7680(RGB)×4320 (QUHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×818.02(H)×1.32(D) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 3.50Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV650SUB-F9D can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 84% (DCI-P3). This product have no backlight. HV650SUB-F9D utilizes V-by-One 32 lane as it's signal inputting systerm, which connected by 116 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
