75Inch 8K AUO TV Panel T750MVR02.0 Product Collection

AUO T750MVR02.0 CELL Application Details

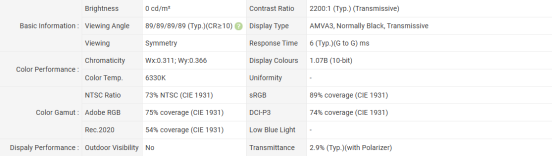

AUO T750MVR02.0 CELL Optical Details

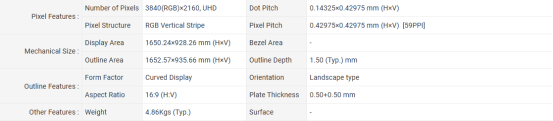

AUO T750MVR02.0 CELL Mechanical Details

AUO T750MVR02.0 CELL Electronics Details

AUO T750MVR02.0 CELL Backlight Details

AUO T750MVR02.0 CELL Package Details

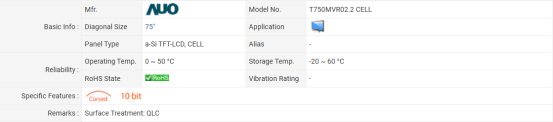

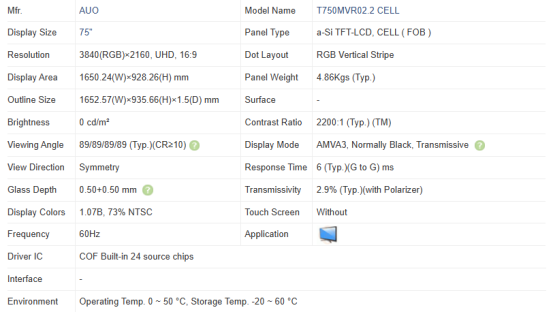

T750MVR02.0 CELL is a 75 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.T750MVR02.0 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1650.24(W)×928.26(H) mm, outline size of 1652.57(W)×935.66(H)×1.5(D) mm, net weight of 4.86Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product,T750MVR02.0 CELL can provides 2200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 73% (NTSC). This product have no backlight. It's typical vertical frame rate (Fv) is 60Hz.
